Creating a SketchUp File from a Drawing

SketchUp is an interactive 3D modeling application that lets you view and refine 3D models.

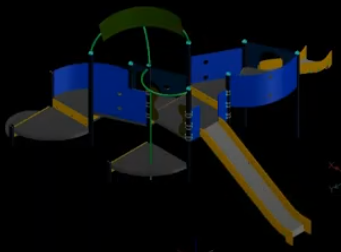

Use the ExportSketchUp command to save the current drawing to a SketchUp (SKP) file. The command converts 2D entities and 3D solids. The resulting SKP files are compatible with SketchUp.

Note: Complex designs may not convert perfectly.

To create a SketchUp file from a drawing:

1. Before exporting to SketchUp, simplify your drawing, if possible. Review the file and remove, freeze, or purge any unnecessary items that might complicate the file conversion.

   Note: The command does not export the following:

   • Images
   • Underlays
   • Colors
2. Click File > Export > Export SketchUp (or type ExportSketchUp).
3. In the dialog box, navigate to the folder where you want to store the file.
4. In File name, type a name for the file.
5. Click Save.

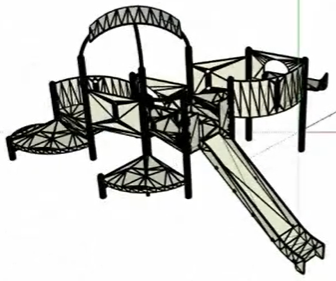

   Once the export process is complete, you can open the file in SketchUp and continue working on your model.



Access

Application Menu: File > Export > Export SketchUp

Command: ExportSketchUp
