Aligning a Set of Specified Entities

Use the AlignX command to align a set of specified entities according to the first selected one.

You can align the following entities:

  • Splines, Polylines, and Lines

  • Arcs, Circle, Ellipses, and elliptical Arcs

  • Text entities (Notes and SimpleNotes)

  • Hatches, Images, and Blocks

  • Dimensions

To align a set of specified entities:

  1. Do one of the following:

    • On the ribbon, select Home > Modify > AlignX.

    • On the menu, click Modify > AlignX.

    • Type AlignX.

  2. In the graphics area, choose a suitable entity and select it.

  3. Select all other entities to align and press Enter.

  4. Specify an alignment option:

    • Top

    • Bottom

    • Left

    • Right

    • Vertical Center

    • Horizontal Center

    • Center

    The entities are aligned to the specified side of the first entity that you have selected.

  5. Press Enter.

Examples:

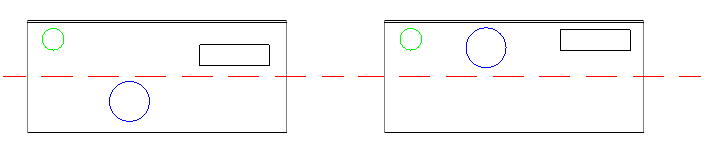

  • First selected entity: the green circle

  • Alignment: Top

ex_align_x_top

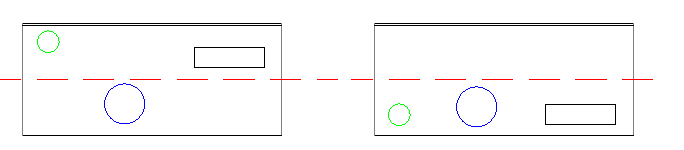

  • First selected entity: the blue circle

  • Alignment: Bottom

ex_align_x_bottom

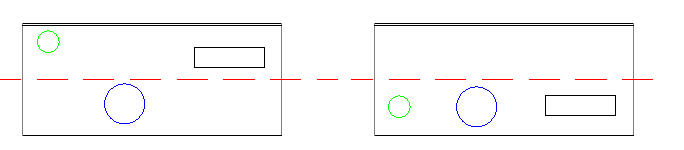

  • First selected entitiy: the blue circle

  • Alignment: Horizontal Center

ex_align_x_horizontal_center

Access

Command: AlignX

Menu: Modify > AlignX

Ribbon: Home > Modify > (Flyout) Align X
