Creating Multiple Copies¶
Use the CopyMultiple command to create multiple copies of selected entities.
Several methods are available:
Create copies at the pointer position
Create copies at a specified distance (Random option)
Create a specified number of equally spaced copies between two points: a base point followed by a second point.
Create an array of copies
To create copies at the pointer position:
Aşağıdakilerden birini yapın:
On the ribbon, click XtraTools > Modify > Copy Multiple.
On the menu, click XtraTools > Modify > Copy Multiple.
Type CopyMultiple.
In the graphics area, specify the entities to copy.
Enter tuşuna basın.
Taban noktasını belirtin.
The entity to copy appears attached to the pointer.
In the graphics area, specify one or more destination points to create copies of the specified entities. The copied entities are placed at the specified positions, relative to the base point.
Beklenmeyen bir sonuç alırsanız, Geri Al seçeneğini belirtin.Objeleri kopyalama işlemini bitirmek için Enter’a basın.
To create a number of copies between two points:
Aşağıdakilerden birini yapın:
On the ribbon, click XtraTools > Modify > Copy Multiple.
On the menu, click XtraTools > Modify > Copy Multiple.
Type CopyMultiple.
In the graphics area, specify the entities to copy.
Enter tuşuna basın.
Taban noktasını belirtin.
Aşağıdaki seçeneklerden birini belirleyin:
Divide. Allocates the number of elements you specify evenly spaced between the base point and a second point.
Specify a second point and the number of copies to create. Press Enter.
Measure. Allocates the elements between the base point and a second point at intervals of a certain specified distance.
Specify a second point and the distance between the copies. Press Enter.
En son kopyalama işlemini iptal etmek için Geri Al seçeneğini kullanabilirsiniz.Objeleri kopyalama işlemini bitirmek için Enter’a basın.
To create an array of copies:
Aşağıdakilerden birini yapın:
On the ribbon, click XtraTools > Modify > Copy Multiple.
On the menu, click XtraTools > Modify > Copy Multiple.
Type CopyMultiple.
In the graphics area, specify the entities to copy.
Enter tuşuna basın.
Taban noktasını belirtin.
Type Array and press Enter.
Bir seçenek belirleyin:
Pick (Dynamic). Specify an angle and a point to define the spacing between entities within rows and columns. The pointer snaps to regular intervals at the specified row and column distance. You can select one array element location at a time.
Divide. Specify an angle and the number of copies to create on the rows and on the columns. Specify a point to define a second corner point to define the rectangular area to fill with copies at equal distances.

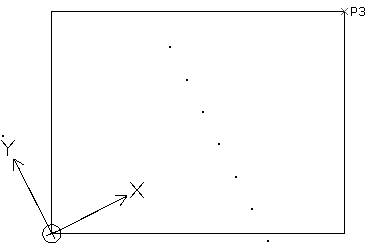

Measure. Specify an angle and a point (P2) to define the spacing between entities within rows and columns. Specify a second corner point (P3) to define the rectangular area to fill with copies at equal distances. The pointer snaps to regular intervals at the specified spacing. The base point (P1) is used as the first corner of the rectangular area.

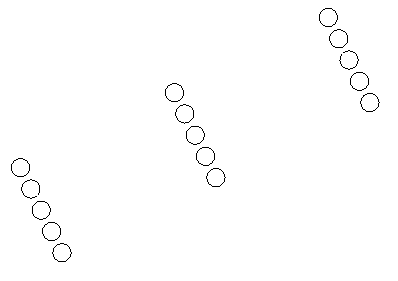

Result:
En son kopyalama işlemini iptal etmek için Geri Al seçeneğini kullanabilirsiniz.Objeleri kopyalama işlemini bitirmek için Enter’a basın.
To create random copies at a specified distance:
Aşağıdakilerden birini yapın:
On the ribbon, click XtraTools > Modify > Copy Multiple.
On the menu, click XtraTools > Modify > Copy Multiple.
Type CopyMultiple.
In the graphics area, specify the entities to copy.
Enter tuşuna basın.
Taban noktasını belirtin.
Type Random and press Enter.
Specify the minimum distance between copies.
Enter tuşuna basın.
As you move the pointer in the graphics area, random copies are created.
Enter tuşuna basın.
Specify another copy option or press Enter to conclude copying.
Erişim
Command: CopyMultiple
Menu: XtraTools > Modify > Copy Multiple
Ribbon: XtraTools > Modify > Copy Multiple
