Wall Junctions Representation¶
A 3D model of a building may contain various wall junctions.
The following wall junction types are recognized and represented in the BIM drawings that are generated from the BIM model:
Butt

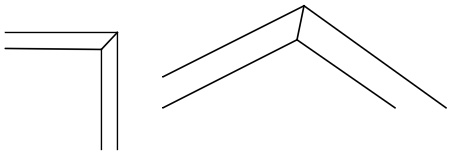

Mitter
Square off
