Merging Dimensions

Use the AM_DimJoin command to merge two or more adjacent dimensions of the same type into one single dimension.

To merge dimensions:

  1. Do one of the following:

    • On the ribbon, click Mechanical Annotate > Dimension Tools > Join.

    • On the menu, click Mechanical Annotate > Dimension Tools > Join.

    • Type AM_DimJoin.

  2. In the graphics area, specify a base dimension.

  3. Specify the dimensions to merge with the base dimension.

  4. Press Enter.

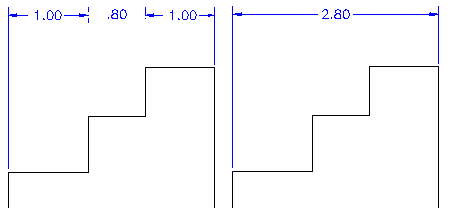

    example_am_dimjoin

Access

Command: AM_DimJoin

Menu: Mechanical Annotate > Dimension Tools > Join

Ribbon: Mechanical Annotate > Dimension Tools > Join
